Find connected pipes and structures

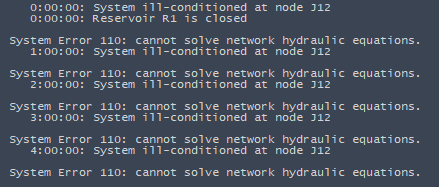

When running a pipe network analysis you might encounter a system ill-conditioned error:

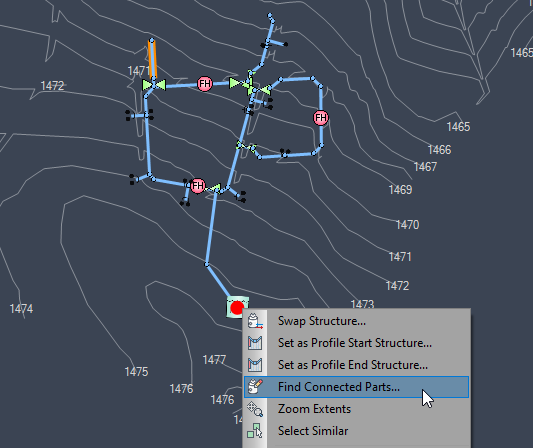

Most of the time the system provides the name of the node where the problem occurs, but there are situations where it is quite difficult to find the problematic pipe or structure. The latest Devotech iDAS Pipe Manager has a command called Find Connected Parts, which highlights all the parts that are connected to the selected node. This command is available from the structure's right click menu:

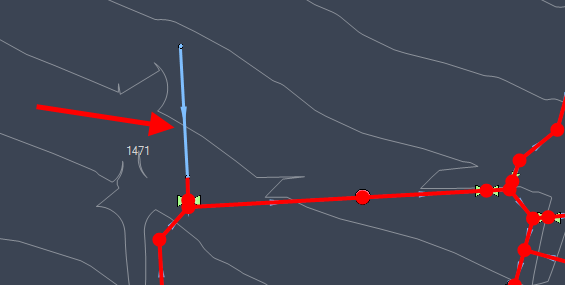

After performing this command, all the connected parts are highlighted in red and the disconnected parts are displayed in the original color:
